Spark SRT05e

Spark SRT05e

Editor Wakesho

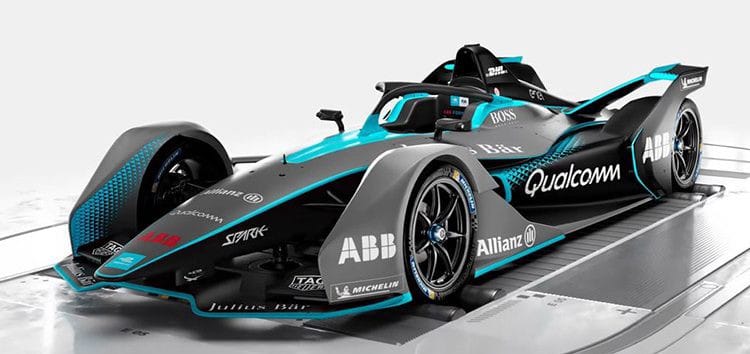

The Spark SRT05E, also known as the Spark Gen2, or simply Gen 2 is an electric formula race car designed for use in the FIA Formula E Championship. The car is the successor to Spark-Renault SRT_01E, and is constructed by Spark Racing Technology with assistance from Dallara, and will be the base car used by all manufacturers and teams from the 2018–2019 FIA Formula E Championship. The car features a new 56 kWh battery from McLaren Applied Technologies, alongside the new Halo cockpit protection system and is the first Formula E car capable of completing a full-race distance.

Summary specs

Performance:

  • Maximum power: 250 kW (c.335 bhp)
  • Race mode: 200 kW (c.270 bhp)
  • FanBoost: 240–250 kW (c.321–335 bhp)[7]
  • Attack Mode: 225 kW (c.301 bhp)[8]
  • Regeneration: 250 kWh (max)
  • Maximum speed: 280 km/h (174 mph)
  • Acceleration 0–100 kph (0–62 mph): 2.8 seconds

Dimensions:

  • Overall length: 5,160 mm

Wheelbase: 3,100 mm

  • Overall width: 1,770 mm

Track width: 1,553 mm

  • Overall height: 1,505 mm

Ride height: 75 mm (max)

  • Weight (inc. driver): 900 kg
  • Battery: 385 kg
  • Tyres: Michelin Pilot Sportβ€Šβ€”β€Š18inches
  • Front width: 260 mm
  • Front diameter: 650 mm
  • Rear width: 305 mm
  • Rear diameter: 690 mm
  • Brakes: Brembo
